{mmrm}: A Robust and Comprehensive R Package for Implementing Mixed Models for Repeated Measures

useR! 2024

Daniel Sabanés Bové

RCONIS

July 9, 2024

Acknowledgments

Thanks to all other authors of {mmrm}:

  • Brian Matthew Lang (MSD)
  • Christian Stock (Boehringer)
  • Dan James (AstraZeneca)
  • Daniel Leibovitz (Roche)
  • Daniel Sjoberg (Roche)
  • Doug Kelkhoff (Roche)
  • Julia Dedic (Roche)
  • Jonathan Sidi (Sanofi)
  • Kevin Kunzmann (Boehringer)
  • Liming Li (Roche)
  • Ya Wang (Gilead)

Acknowledgments

Thanks for discussions and contributions from:

  • Ben Bolker (McMaster University)
  • Davide Garolini (Roche)
  • Craig Gower-Page (Roche)
  • Dinakar Kulkarni (Roche)
  • Gonzalo Duran Pacheco (Roche)
  • Members of openstatsware

Agenda

  • Prelude: openstatsware
  • Interlude: Mixed Models for Repeated Measures and {mmrm}
  • Finale: Ingredients for Successful Collaborations

Prelude: openstatsware

openstatsware

  • Formed on 19 August 2022, affiliated with American Statistical Association (ASA) as well as European Federation of Statisticians in the Pharma Industry (EFSPI)
  • Cross pharma industry collaboration (56 members from 35 organizations)
  • Homepage at openstatsware.org
  • We welcome new members to join!

Working Group Objectives

  • Primary
    • Engineer R packages that implement important statistical methods
      • to fill in gaps in the open-source statistical software landscape
      • focusing on what is needed for biopharmaceutical applications
  • Secondary
    • Develop and disseminate best practices for engineering high-quality open-source statistical software
      • By actively doing the statistical engineering work together, we align on best practices and can communicate these to others
      • See my virtual presentation about openstatsguide and the corresponding poster tomorrow!

Interlude: Mixed Models for Repeated Measures and {mmrm}

What is a MMRM?

  • MMRM is a popular choice for analyzing longitudinal continuous outcomes in randomized clinical trials
  • For each subject \(i\) we observe a vector \[ Y_i = (y_{i1}, \dotsc, y_{im_i})^\top \in \mathbb{R}^{m_i} \]
  • Use a design matrix \(X_i \in \mathbb{R}^{m_i \times p}\)
  • Use a corresponding coefficient vector \(\beta \in \mathbb{R}^{p}\)
  • Assume that the observations are multivariate normal distributed: \[ Y_i \sim N(X_i\beta, \Sigma_i) \] where the covariance matrix \(\Sigma_i \in \mathbb{R}^{m_i \times m_i}\) is derived by subsetting the overall covariance matrix \(\Sigma \in \mathbb{R}^{m \times m}\) appropriately

Covariance model and Estimation

  • The symmetric and positive definite covariance matrix \(\Sigma\) is parametrized by a vector of variance parameters \(\theta = (\theta_1, \dotsc, \theta_k)^\top\)
  • There are many different choices for how to model the covariance matrix and correspondingly \(\theta\) has different interpretations, e.g.:
    • Unstructured, Toeplitz, AR1, compound symmetry, ante-dependence, spatial exponential
    • Group specific covariance estimates and weights
  • Estimation is performed
    • (sometimes) via maximum likelihood (ML) inference, maximizing the joint log-likelihood of \((\beta, \theta)\) or
    • (usually) via integrating out \(\beta\) from the likelihood and maximizing for \(\theta\) (restricted ML, REML)

Existing R Packages and Tried Solutions

  • One challenge is that we need to use “adjusted” degrees of freedom for t- or F-test statistics
    • because of the covariance parameter estimation and data sets are usually unbalanced
    • Typical Satterthwaite or Kenward-Roger adjustment methods
  • Initially thought that the MMRM problem was solved by using lme4 with lmerTest, learned that this approach failed on large data sets (slow, did not converge)
  • nlme does not give Satterthwaite adjusted degrees of freedom, has convergence issues, and with emmeans it is only approximate
  • Next we tried to extend glmmTMB to calculate Satterthwaite adjusted degrees of freedom, but it did not work

New Idea

  • We only want to fit a fixed effects model with a structured covariance matrix for each subject
  • The idea is then to use the Template Model Builder (TMB) directly
    • as it is also underlying glmmTMB
    • but code the exact model we want
  • We do this by implementing the log-likelihood in C++ using the TMB provided libraries
  • Provide an R solution that
    • has fast convergence times
    • generates estimates closest to (previous) “gold standard” implementation (SAS)

Advantages of TMB

  • Fast C++ framework for defining objective functions (Rcpp would have been alternative interface)
  • Automatic differentiation of the log-likelihood as a function of the variance parameters
  • We get the gradient and Hessian exactly and without additional coding
  • Syntactic sugars to allow simple matrix calculations or operations like R
  • This can be used from the R side with the TMB interface and plugged into optimizers

Why it’s not just another package

  • Ongoing maintenance and support from the pharmaceutical industry
    • 5 companies being involved in the funding, on track to become standard package
  • Development using best practices as show case for high quality package
    • Thorough and transparent unit and integration tests to ensure accurate results
    • The integration tests in {mmrm} are set to a tolerance of \(10^{-3}\) when compared to SAS outputs.
    • Uses the testthat framework with covr to communicate the testing coverage

Highlighted Features of mmrm

  • Hypothesis Testing:
    • emmeans interface for least square means
    • Satterthwaite and Kenward-Roger adjustments
    • Robust sandwich estimator for covariance
  • Integrations and extentions
    • tidymodels builtin parsnip engine and recipes for streamlined model fitting workflows
    • teal, tern, rtables integration for post processing and reporting
    • Support conditional mean prediction and simulation
    • Also used in rbmi for conditional mean imputation!

Computational Efficiency

mmrm not only supports multiple covariance structure, it also has good efficiency (due to fast implementations in C++)

Comparison of convergence times (ms) for example (source)
Implementation Median First Quartile Third Quartile
mmrm 56.15 55.76 56.30
PROC GLIMMIX 100.00 100.00 100.00
lmer 247.02 245.25 257.46
gls 687.63 683.50 692.45
glmmTMB 715.90 708.70 721.57

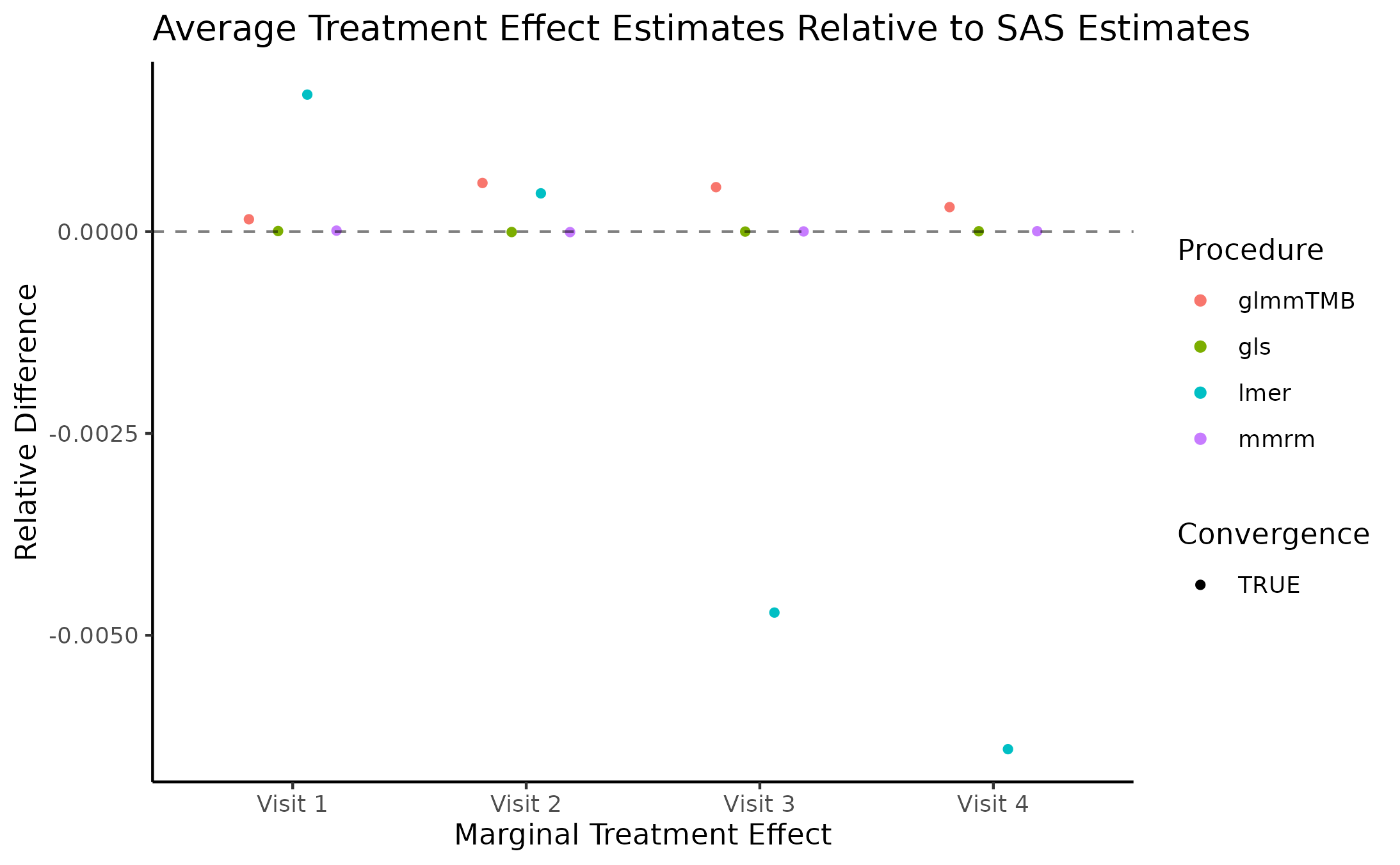

Differences with SAS

{mmrm} has small difference from SAS

Marginal mean treatment effects for each visit (source)

Impact of mmrm

Getting started

  • mmrm is on CRAN - use this as a starting point:
install.packages("mmrm")
library(mmrm)
fit <- mmrm(
  formula = FEV1 ~ RACE + SEX + ARMCD * AVISIT + us(AVISIT | USUBJID),
  data = fev_data
)
summary(fit)
library(emmeans)
emmeans(fit, ~ ARMCD | AVISIT)

Finale: Ingredients for successful and sustainable collaboration

Human factors

  • Mutual interest and trust
  • Prerequisite is getting to know each other
    • Although mostly just online, biweekly calls help a lot with this
  • Reciprocity mindset
    • “Reciprocity means that in response to friendly actions, people are frequently much nicer and much more cooperative than predicted by the self-interest model”
    • Personal experience: If you first give away something, more will come back to you.

Development process

  • Important to go public as soon as possible
    • don’t wait for the product to be finished
    • you never know who else might be interested/could help
  • Version control with git
    • cornerstone of effective collaboration
  • Building software together works better than alone
    • Different perspectives in discussions and code review help to optimize the user interface and thus experience

Coding standards

  • Consistent and readable code style simplifies joint work
  • Written (!) contribution guidelines help
  • Lowering the entry hurdle using developer calls is important

Robust test suite

  • Unit and integration tests are essential for preventing regression and assuring quality
  • Especially with compiled code critical to see if package works correctly
  • Use continuous integration during development to make sure nothing breaks along the way

Documentation

  • Lots of work but extremely important
    • start with writing up the methods details
    • think about the code structure first in a “design doc”
    • only then put the code in the package
  • Needs to be kept up-to-date
  • Need to have examples & vignettes
    • Testing alone is not sufficient
    • Builds trust with users
    • Reference for developers over time

Thank you! Questions?
